16/4 Flat Marine Tinned Trailer Cable

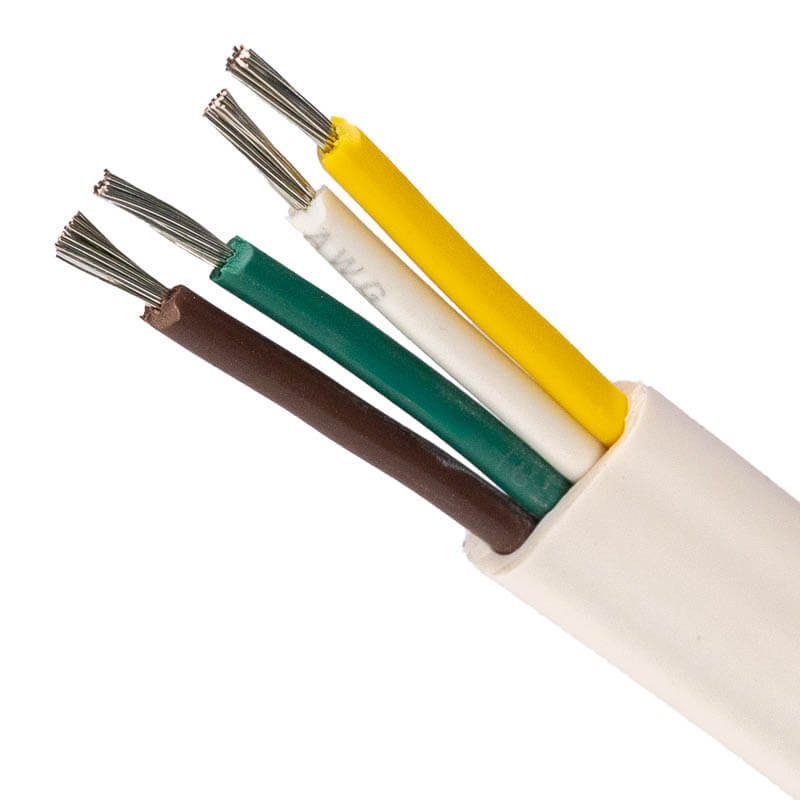

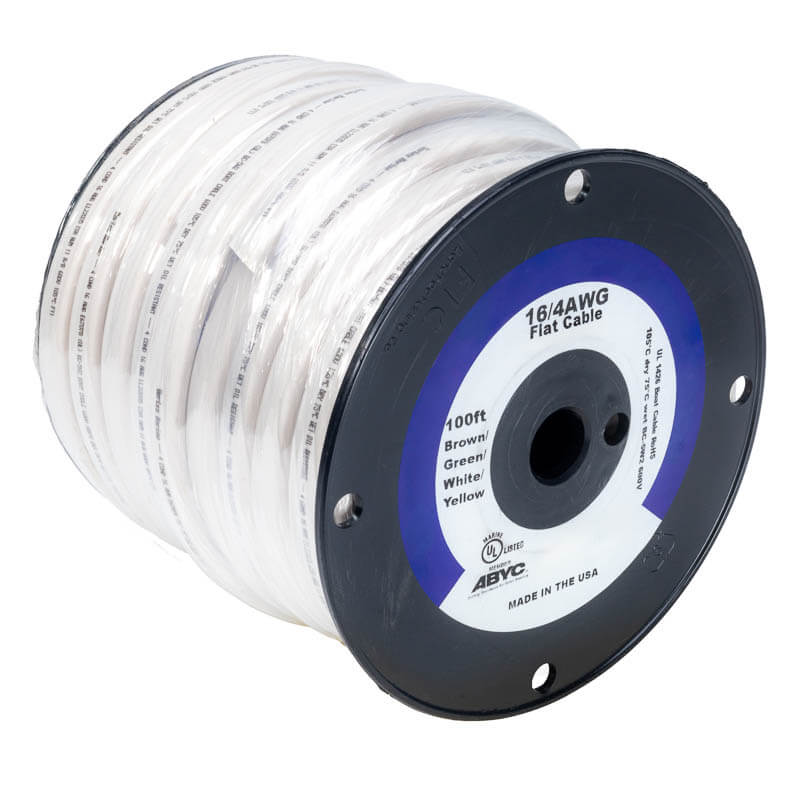

Product Description 16/4 Flat Marine Tinned Trailer Cable: 100ft Spool Our 16/4 Flat Marine Tinned Trailer Cable is designed for marine applications such as boat trailers, offering exceptional corrosion resistance and durability. This tinned copper trailer cable features Brown, Green, White and Yellow Marine Grade primary conductors in a white common jacket that is made for easy removal while providing the best abrasion resistance available. Trailer Cable exceeds UL 1426 standards and is made from the highest quality ultra-flexible (Type 3/Class K) tinned copper stranding that provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. The premium vinyl insulation is rated at 600 volts, 105 degrees C dry and 75 degrees C wet, stays flexible even in extreme cold (-40 degrees F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultraviolet radiation. Explore our full range of marine tinned cables and wiring solutions. 16/4 Flat Marine Tinned Cable Specs: APPLICATION: Flexible UL Standard boat cable suitable for all marine applications CONSTRUCTION: Conductor: Finely stranded Type III Tinned Copper Insulation: Ultra Flexible Polyvinyl Chloride. Resists Acids, Abrasion, Alkali, Flame, Gasoline, Moisture, and Oil Color: Brown, Green, White, Yellow OPERATING TEMP: -20˚C to 105˚C, BC-5W2 (105˚C Dry, 75˚C Wet) VOLTAGE RATING: 600 Volts STANDARDS: UL Standard 1426 BC-5W2 (Electric Cable for Boat) | ABYC E-11, NMMA, USCG 33 CFR Part 183.430, 183.435, SAE J378, 1127, 1128 Why Choose Our Tinned Marine Trailer Cable? Tinned – Tinning is a process use to coat the individual strands of copper and greatly increases corrosion resistance. Stranded – Fine, type III stranding in our wire make it more flexible, and reduces metal fatigue caused by vibrations common on boats 105° C Insulation – High insulation rating allows the more current capacity for each wire size How to Choose Marine Wire Size: There are three factors when choosing the right wire gauge: Current draw of the device – measured in Amps Total length of the run – measured in feet as a “round trip” Allowable voltage drop – measured in % loss of voltage ABYC says that non-critical loads like a livewell, or courtesy lights should have no more than a 10% voltage drop, while critical loads like a bilge pump or navigation lights should have no more than a 3% voltage drop. Remember, length of the run is a “round trip”… so from the battery, out to the load and back.    Example calculations are below the table. Example 1: Your livewell pulls 6A.  There is 10 feet from the battery to the switch panel, then 5 more feet from the switch panel to the console livewell. Length of run is 10 5 5 10 = 30ft (from battery to load, and back again) On a livewell a 10% voltage drop is acceptable, so we use the top table.  We’ll round up the 6A, to 10A, and use 14AWG wire. Example 2: Your LED navigation lights pull 3A.  There is 10ft from the battery to the switch panel, then 14ft of wire from the switch panel to the lights. Length of run is 10 14 14 10 = 48ft (from the battery to load, and back again) Navigation lights are critical, so only 3% voltage drop is allowed, so we use the bottom table.  We’ll round the 3A up to 5A, and 48ft up to 50ft, and use 10 AWG wire. ABYC Current Rating: Full chart below.  Use the 105°C rating… most often the column for outside engine spaces.  Current ratings of the wire we carry, non-bundled, outside engine spaces is: 16AWG – 25A 14AWG – 30A 12 AWG – 40A 10 AWG – 55A
